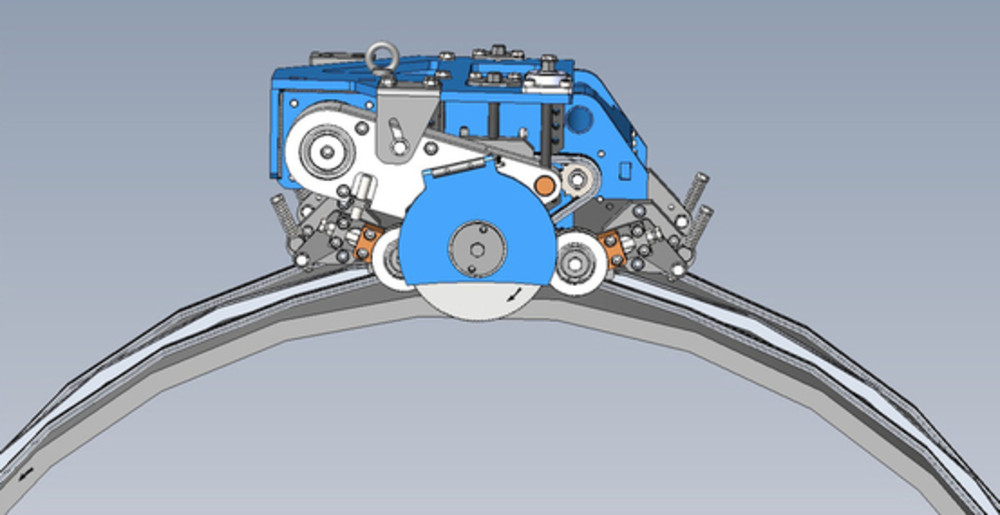

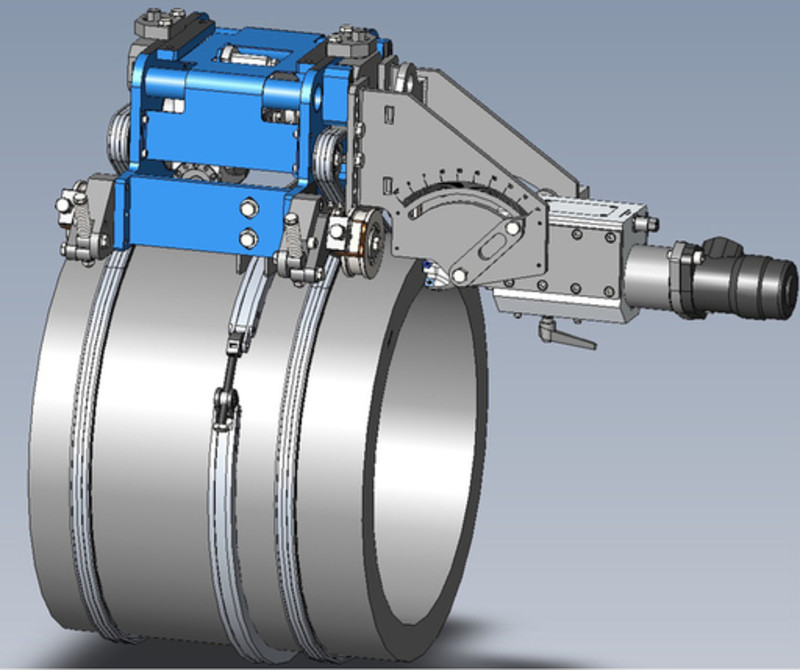

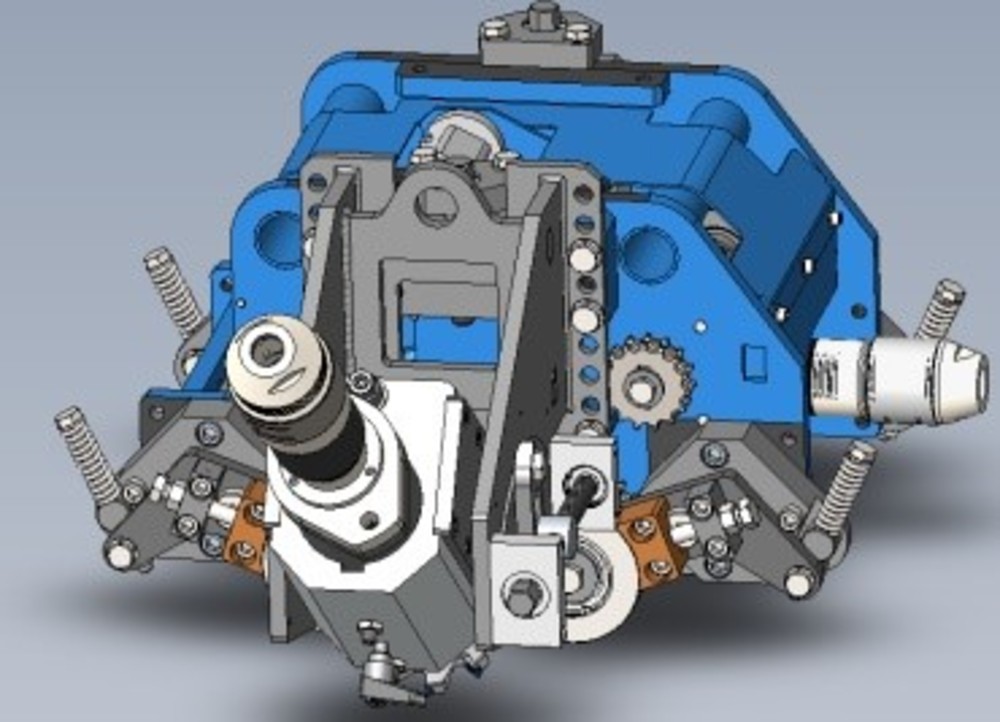

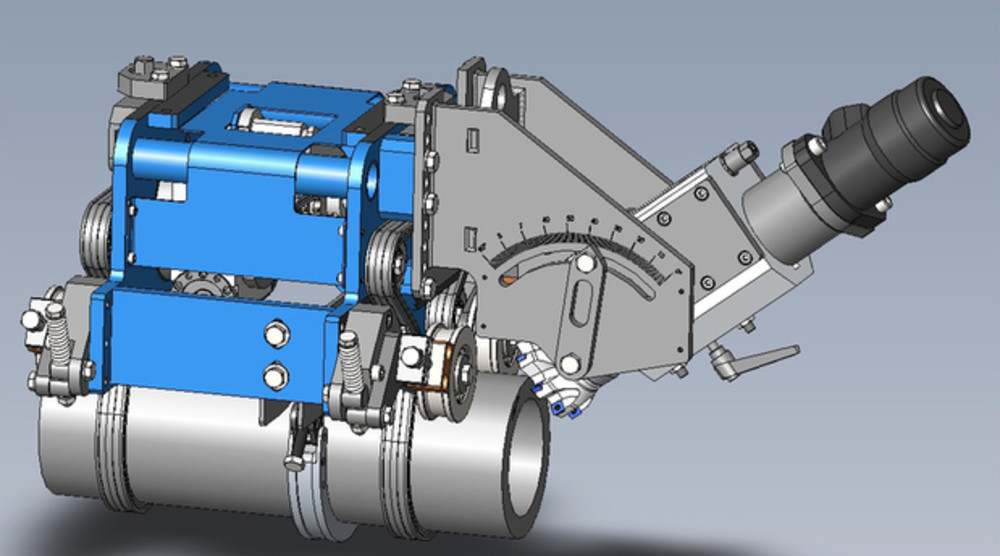

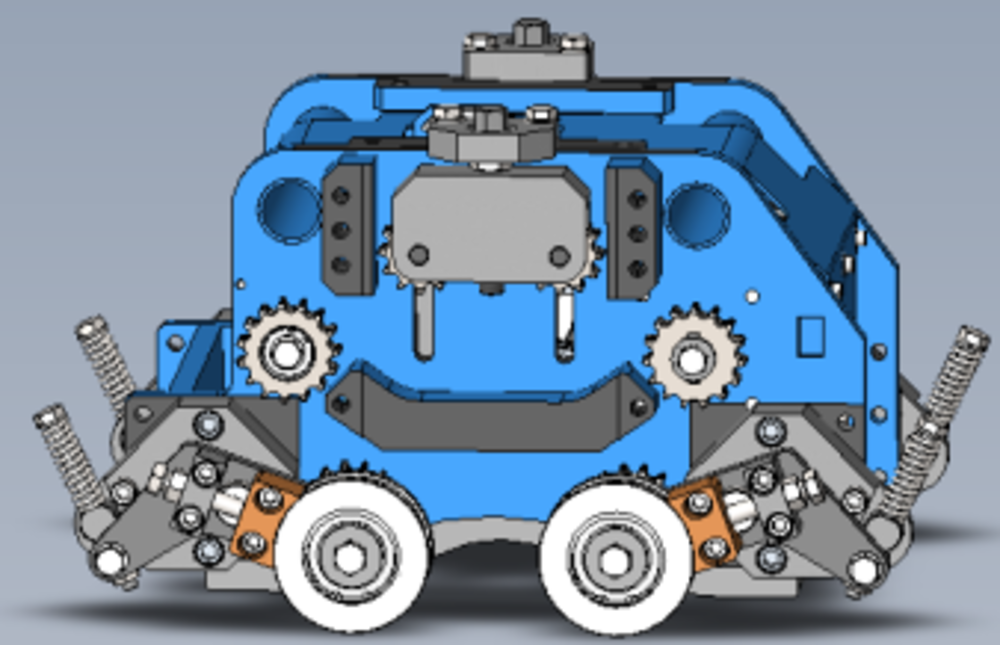

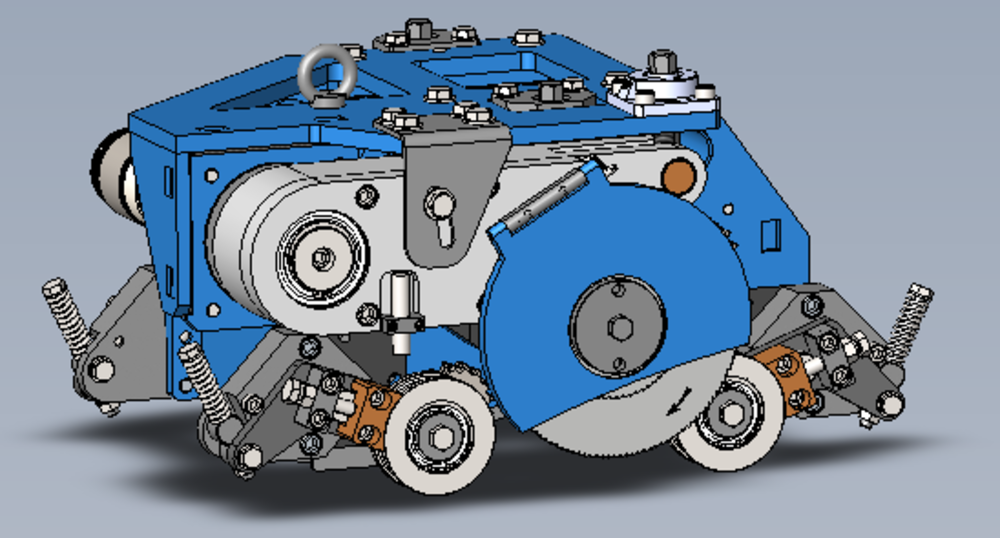

OCM - Orbital cutting and beveling machine for tubes and pipes

Newsletters 08/29/2017

The OCM portable tube cutting machine is designed for cutting, beveling andcutting tubes.

DESCRIPTION :


The OCM portable tube cutting machine is designed for cutting, beveling and cutting tubes to length from 6’’in diameter (Ø150 mm) O.D. minimum and for wall thicknesses up to 2’’ (52.37 mm).

Its independent beveling module is entirely adjustable and performs bevels from 0° to 90° without changing accessories.

It was designed to be easy to use.

Robust and reliable, it can be used on-site, in the workshop or in challenging environments.

It has extension chains to clamp onto large diameter tubes.

  • The OCM tube cutting machine is the essential complement for all your welding operations.
  • Portable machining tool (OD clamping).
  • Cutting and beveling modules available.
  • Perfect weld preparation.
  • Ability to perform I and V bevels from 0 to 90°.
  • For construction, maintenance, and repair of tubular components.
  • On -site or in the workshop.
  • No heat-affected zone!
  • Designed for all types of materials; carbon steel, chromium, stainless steel, duplex, super duplex, copper-nickel alloys, inconel, P91, aluminum, exotic alloys.
  • OCMHY-CH.png
    OCM tube cutting machinePortable machining tool (OD clamping)
  • OCMP-CC.png
    OCM tube cutting machinePerfect weld preparation
  • OCMP-CF.jpg
    OCM tube cutting machineEssential complement for all your welding operations
