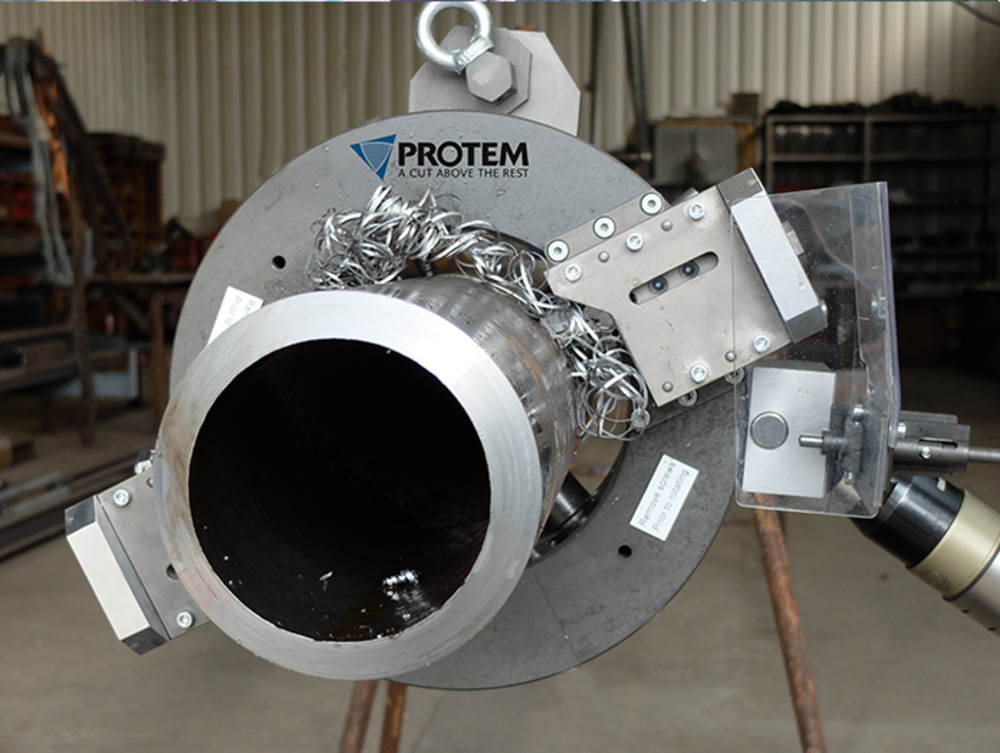

TT-NG Series

TT-NG Series


By decades of proven reliable technology and constant further development, the TTNG-machines highlight premium tools for perfect welding preparations. Designed for standard and especially for heavy walls tubes and pipes, for virtually all kind of materials, the TTNG meet the demand for high accuracy on today‘s welding applications.

The profile is rounded with the machines power, rigidity, dependability, versatility and low weight.

To mount the machine on the tube the two halfshells connected with a hinge can be opened.

  • TTNG168 - Orbital Cutting & Beveling machine for pipes ranging from 2" to 6"

    60.3 mm (2.37") ID
    168.3 mm (6.63") OD

  • TTNG219 - Clamshell Cutting & Beveling machine for pipes ranging from 4" to 8"

    114.3 mm (4.50") ID
    219.1 mm (8.63") OD

  • TTNG273 - Splitframe Tube Cutting & Beveling for pipes ranging from 6" to 10"

    168.3 mm (6.63") ID
    273.1 mm (10.75") OD

  • TTNG323 - Orbital Cutting & Beveling machine for pipes ranging from 8" to 12"

    219.1 mm (8.63") ID
    323.9 mm (12.75") OD

  • TTNG406 -Clamshell Cutting & Beveling machine for pipes ranging from 10" to 16"

    273.1 mm (10.75") ID
    406.4 mm (16.00") OD

  • TTNG508 - Splitframe Tube Cutting & Beveling for pipes ranging from 12" to 20"

    323.9 mm (12.75") ID
    508 mm (20.00") OD

  • TTNG610 - Orbital Cutting & Beveling machine for pipes ranging from 16" to 24"

    406.4 mm (16.00") ID
    610 mm (24.02") OD

  • TTNG762 - Clamshell Cutting & Beveling machine for pipes ranging from 22" to 30"

    558.8 mm (22.00") ID
    762 mm (30.00") OD

  • TTNG900 - Splitframe Tube Cutting & Beveling for pipes ranging from 26" to 36"

    660.4 mm (26.00") ID
    914.4 mm (36.00") OD

  • TTNG1016 - Orbital Cutting & Beveling machine for pipes ranging from 32" to 40"

    812.8 mm (32.00") ID
    1016 mm (40.00") OD

  • TTNG1200 - Clamshell Cutting & Beveling machine for pipes ranging from 36" to 48"

    914.4 mm (36.00") ID
    1219.2 mm (48.00") OD

  • TTNG1400 - Splitframe Tube Cutting & Beveling for pipes ranging from 44" to 56"

    1120 mm (44.09") ID
    1480 mm (58.27") OD
