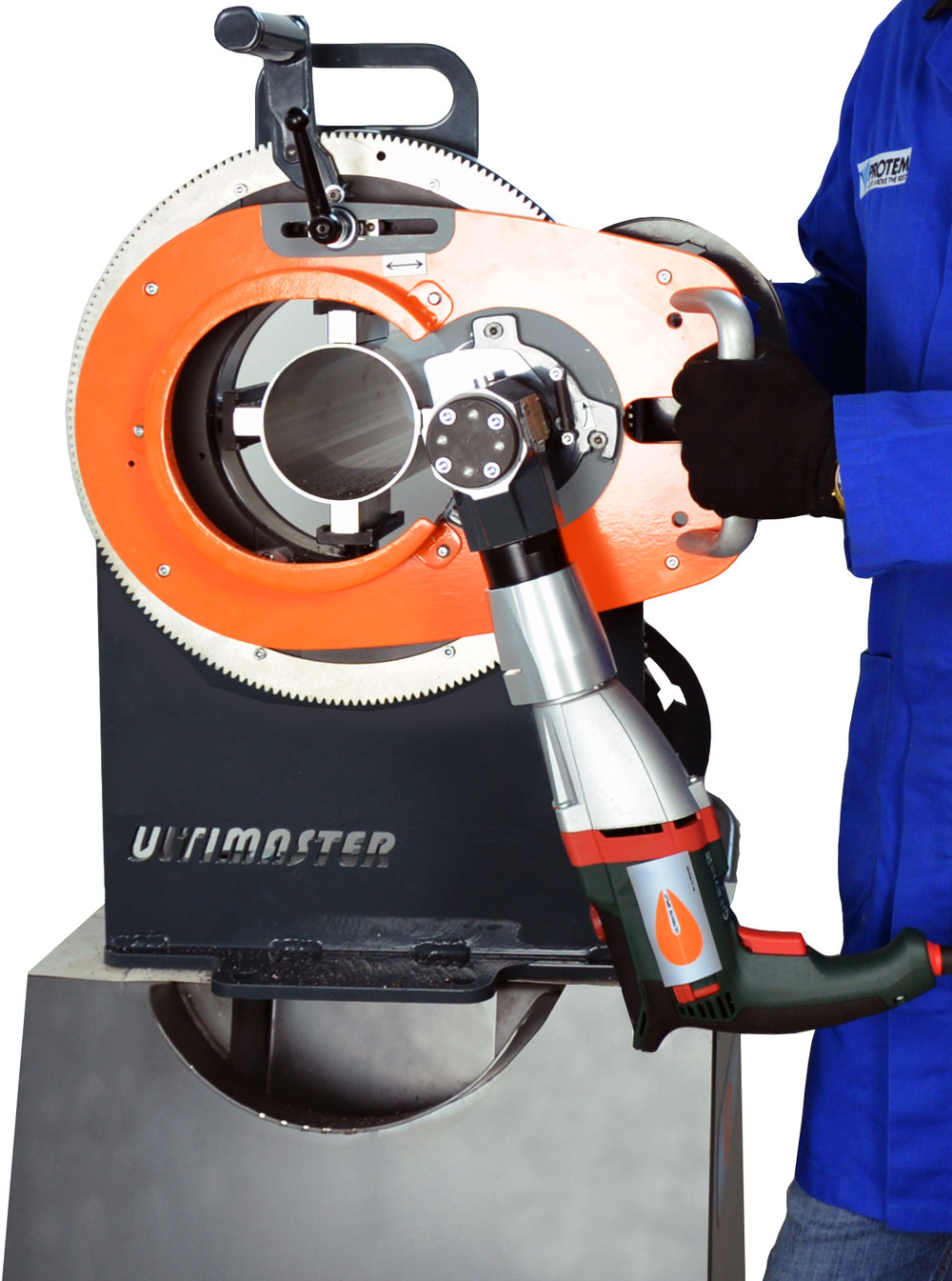

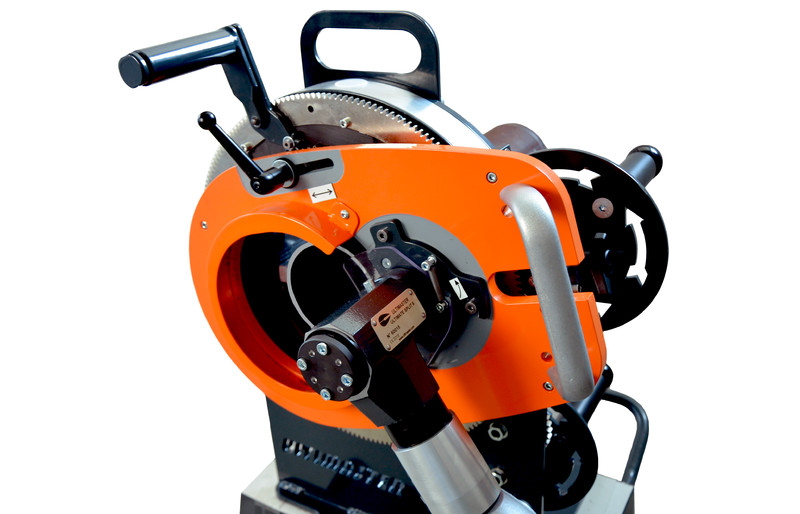

Ultimaster - Ultimate Split 6

Publications presse 01/16/2019

The Ultimate Split 6 orbital cutting machine is used for cutting tubes made of virtually all mate¬rials having diameters ranging from 1/2“ (12. 7 mm) to 6“ (168 mm) and wallthicknesses ranging from 0.04“ (1 mm) to 0. 59“ (15 mm).

It enables the cutting of pipes without any deformation thanks to its concentric clamping system. The cut is absolutely perpendicular and burr-free. The adjustment to the different diameters is very simple and fast.

The Ultimate Split 6 is the orbital cutting saw you need for all your welding preparation works on-site or in the workshop. Various motorization options are available: Electric or pneumatic.

With the orbital cutting machine Ultimate Split 6 you can cut tubes very fast and with perfect tube preparation for welding. A 316L stainless steel tube with a diameter of 114.3 mm (4") x 2 mm (0.078") is cut in seconds.

The orbital cutting process used for the US6 provides a lot of advantages :

  • Perpendicular cut
  • Automatic centering onto the pipe
  • Perfect concentric clamping
  • Burr-free cut
  • No Vibration
  • No heat-affected zone
  • Excellent preparation for mechanised welding processes
  • Rigidity, ergonomic design, flexibility, reliability.
  • Suitable for all types of steel: mild steel, stainless steel, duplex, super duplex, inconel, hastelloy, aluminium, copper, titanium

ULTIMASTER orbital pipe cutting units are the ideal solution for your on-site jobs. This machine is also perfectly suited for prefabrication workplaces and it can be used under sever conditions (extreme temperatures, high humidity, ionizing radiations).

Different saw blades can be used, depending on the pipe thickness to be cut. The diameter of the orbital cutting saw blades is constantly 100 mm (3. 94“). Specific coating TIALN available on order.
