Orbital Cutting on Tubes


Tube cutting is a necessary machining operation for the prefabrication, construction, maintenance, repair or removal of damaged parts, caused by corrosion, for example.

Tubular components are affected by channeled substances that affect the original condition of the tube. Oil, gas or water at high-pressures are abrasive and can alter the corrosion of the tube either chemically and/or mechanically.

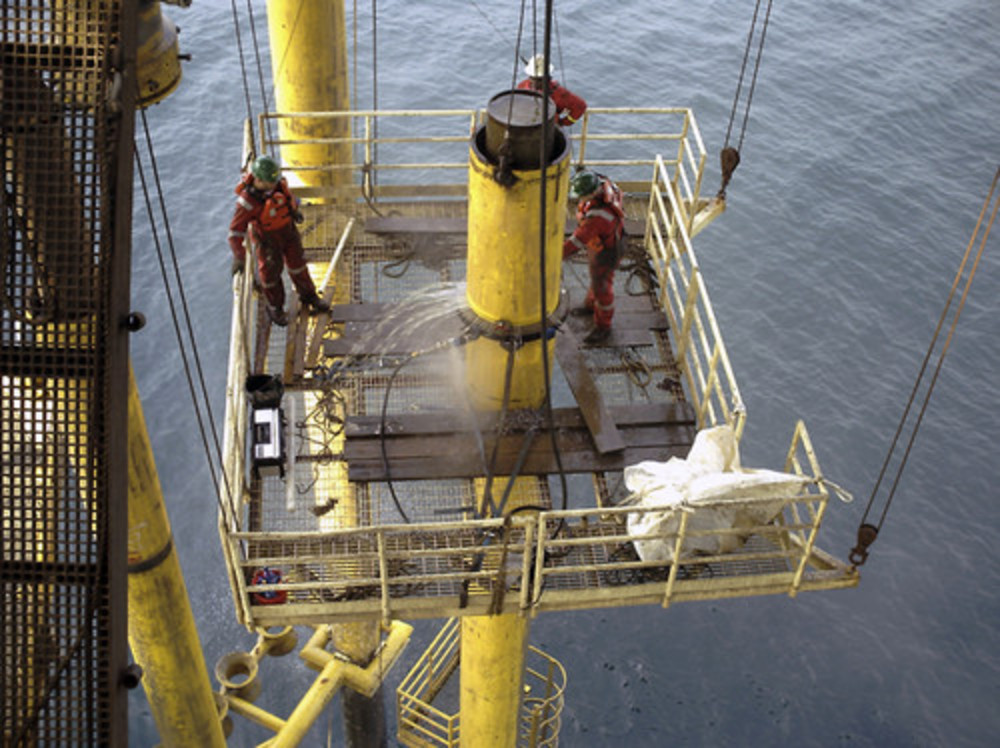

When the replacement of the tube is absolutely necessary, the cut is made in upstream and downstream sections of the damaged tube. This maintenance operation can be done on-site and requires the best equipment for a perfect surface quality before performing welding operations.

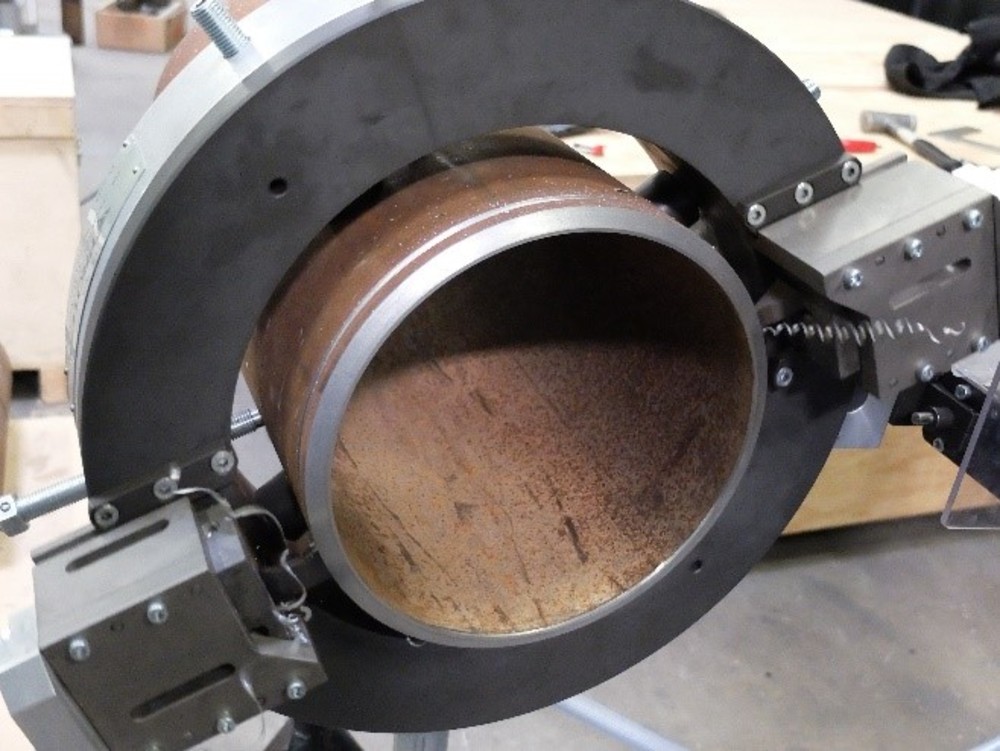

Orbital Cutting Machines by PROTEM


PROTEM tube cutting and beveling machines are portable machines.

They are light weight, reliable, easy to use and they ensure a perfect weld preparation with no heat affected zones on all types of materials, such as, steel or inox tubes.

The PROTEM product range includes several types of cutting and beveling machines:

To cut and bevel tubes with large wall thicknesses.

See everything

The TT-LW Series Machines

  • TTNG-LW168 - Orbital Cutting & Beveling machine Splitframe Clamshell for pipes ranging from 2" to 6"

    60.3 mm (2.37") ID
    168.3 mm (6.63") OD

  • TTNG-LW219 - Clamshell Cutting & Beveling machine-Pipe Cold Cutting Machine for pipes ranging from 4" to 8"

    114.3 mm (4.50") ID
    219.1 mm (8.63") OD

  • TTNG-LW273 - Splitframe Orbital Tube Cutting & Beveling Clamshell for pipes ranging from 6" à 10"

    168.3 mm (6.63") ID
    273.1 mm (10.75") OD

  • TTNG-LW323 - Orbital Cutting & Beveling machine Splitframe Clamshell for pipes ranging from 8" à 12"

    219.1 mm (8.63") ID
    323.9 mm (12.75") OD

  • TTNG-LW406 - Orbital Pipe Cutting and Beveling Splitframe Clamshell for pipes ranging from 10" à 16"

    273.1 mm (10.75") ID
    406.4 mm (16.00") OD

  • TTNG-LW508 - Splitframe Orbital Tube Cutting & Beveling Clamshell for pipes ranging from 12" à 20"

    323.9 mm (12.75") ID
    508 mm (20.00") OD

  • TTNG-LW610 - Orbital Cutting & Beveling machine Splitframe Clamshell for pipes ranging from 16" à 24"

    406.4 mm (16.00") ID
    610 mm (24.02") OD

With a simpler design, cut and bevel tubes up to 25.4 mm (1″)

See everything

The TTS-NG Machines

  • TTSNG27 - Orbital Severing & Beveling Machine Splitframe Clamshell for pipes from 10 to 26 mm

    10.3 mm (0.41") ID
    26.7 mm (1.05") OD

  • TTSNG33 - Orbital Severing & Beveling Machine Splitframe Clamshell for pipes from 10 to 33 mm

    10.3 mm (0.41") ID
    33.4 mm (1.31") OD

  • TTSNG42 - Clamshell Cutting & Beveling machine-Pipe Cold Cutting Machine for pipes from 10 to 42 mm

    10.3 mm (0.41") ID
    42.2 mm (1.66") OD

  • TTSNG48 - Splitframe Orbital Tube Cutting & Beveling Clamshell for pipes from 10 to 48 mm

    10.3 mm (0.41") ID
    48.3 mm (1.90") OD

  • TTSNG60 - Orbital Severing & Beveling Machine Splitframe Clamshell for pipes from 21 to 60 mm

    21.3 mm (0.84") ID
    60.3 mm (2.37") OD

  • TTSNG73 - Clamshell Cutting & Beveling machine-Pipe Cold Cutting Machine for pipes from 21 to 73 mm

    21.3 mm (0.84") ID
    73 mm (2.87") OD

  • TTSNG88 - Splitframe Orbital Tube Cutting & Beveling Clamshell for pipes from 33 to 88 mm

    33.4 mm (1.31") ID
    88.9 mm (3.50") OD

  • TTSNG101 - Orbital Severing & Beveling Machine Splitframe Clamshell for pipes from 48 to 101 mm

    48.3 mm (1.90") ID
    101.6 mm (4.00") OD

  • TTSNG114 - Clamshell Cutting & Beveling machine-Pipe Cold Cutting Machine for pipes from 60 to 114 mm

    60.3 mm (2.37") ID
    114.3 mm (4.50") OD

  • TTSNG127 - Splitframe Orbital Tube Cutting & Beveling Clamshell for pipes from 60 to 127 mm

    60.3 mm (2.37") ID
    127 mm (5.00") OD

  • TTSNG141 - Orbital Severing & Beveling Machine Splitframe Clamshell for pipes from 73 to 141 mm

    73 mm (2.87") ID
    141.3 mm (5.56") OD

  • TTSNG168 - Clamshell Cutting & Beveling machine-Pipe Cold Cutting Machine for pipes from 88 to 168 mm

    88.9 mm (3.50") ID
    168.3 mm (6.63") OD

  • TTSNG193 - Splitframe Orbital Tube Cutting & Beveling Clamshell for pipes from 114 to 193 mm

    114.3 mm (4.50") ID
    193 mm (7.60") OD

  • TTSNG219 - Orbital Severing & Beveling Machine Splitframe Clamshell for pipes from 141 to 219 mm

    141.3 mm (5.56") ID
    219.1 mm (8.63") OD

Allow accurate cutting and/or beveling of tubes and pipes, of all schedules, from 10.3 mm (.406’’) up to 273 mm (10.7’’) OD in one simultaneous operation.

See everything

The TTS-RD machines

  • TTS-RD60 - Orbital Tube Cutting Machine for pipes ranging from 21 to 60 mm

    21.3 mm (0.84") ID
    60.3 mm (2.37") OD

  • TTS-RD73 - Orbital Tube Cutting Machine for pipes ranging from 21 to 73 mm

    21.3 mm (0.84") ID
    73 mm (2.87") OD

  • TTS-RD88 - Orbital Tube Cutting Machine for pipes ranging from 33 to 88 mm

    33.4 mm (1.31") ID
    88.9 mm (3.50") OD

  • TTS-RD101 - Orbital Tube Cutting Machine for pipes ranging from 48 to 101 mm

    48.3 mm (1.90") ID
    101.6 mm (4.00") OD

  • TmTS-RD114 - Orbital Tube Cutting Machine for pipes ranging from 60 to 114 mm

    60.3 mm (2.37") ID
    114.3 mm (4.50") OD

  • TTS-RD127 - Orbital Tube Cutting Machine for pipes ranging from 60 to 127 mm

    60.3 mm (2.37") ID
    127 mm (5.00") OD

  • TTS-RD141 - Orbital Tube Cutting Machine for pipes ranging from 73 to 141 mm

    73 mm (2.87") ID
    141.3 mm (5.56") OD

Have been specially developed to cut thin-walledl tubes from steel and titanium in restrictive space conditions.

High Speed Machining to Increase Productivity

PROTEM cutting machines are the equipment you will need for your production and prefabrication requirements!

See everything

The CTA - High Speed Cutting and Beveling

  • CTA-1-4 - High Speed cutting and beveling machine for pipes ranging from 1" to 4"

    25.4 mm (1.00") ID
    114 mm (4.49") OD

  • CTA-2-6 - Automatic cutting and beveling machine for pipes ranging from 2" to 6"

    60.3 mm (2.37") ID
    152.4 mm (6.00") OD

  • CTA-2-12 - High Speed cutting and beveling machine for pipes ranging from 2" to 12"

    60.3 mm (2.37") ID
    304.8 mm (12.00") OD

  • CTA-6-16 - Automatic cutting and beveling machine for pipes ranging from 6" to 16"

    168.3 mm (6.63") ID
    406.4 mm (16.00") OD

  • CTA-12-24 - High Speed cutting and beveling machine for pipes ranging from 12" to 24"

    323.9 mm (12.75") ID
    610 mm (24.02") OD

  • CTA-16-30 - Automatic cutting and beveling machine for pipes ranging from 16" to 30"

    406.4 mm (16.00") ID
    762 mm (30.00") OD

Machines tubes and pipes with OD diameters ranging from 60.3 mm (2”) to 914.4 mm (36”). Tubes will be cut and beveled within just a few seconds.

See everything

The TNO are high speed cutting and beveling machines

These machines are specially designed to fit your piping or tubing prefab applications, on-site or in workshops. These machines cut and bevel heavy-walled pipes faster than any other machine! For tube machining from 114.3 mm (4.5’’) to 1828.8mm (72’’).

MF-Series machines

Designed to cut and bevel tubes from 12.7 mm (1/2’’) to 420 mm (16.5’’).

PROTEM orbital cutting machines are first-class equipment to perform perfect weld preparation with no heat affected zones.

Specially designed for tubes and heavy-walled pipes, and for virtually all kind of materials, the PROTEM cutting machines meet the demand for high accuracy on all of today‘s welding applications.

OCM Machines


The OCM portable tube cutting machine is designed for cutting and beveling tubes to length from 6" in diameter (Ø168.3 mm) O.D. minimum and for wall thicknesses up to 2" (50.8 mm). Its independent beveling module is entirely adjustable and performs bevels from 0° to 90° without changing accessories.


It was designed to be easy to use; Robust and reliable, it can be used on-site, in the workshop or in challenging
environments. It has extension chains to clamp onto large diameter tubes.

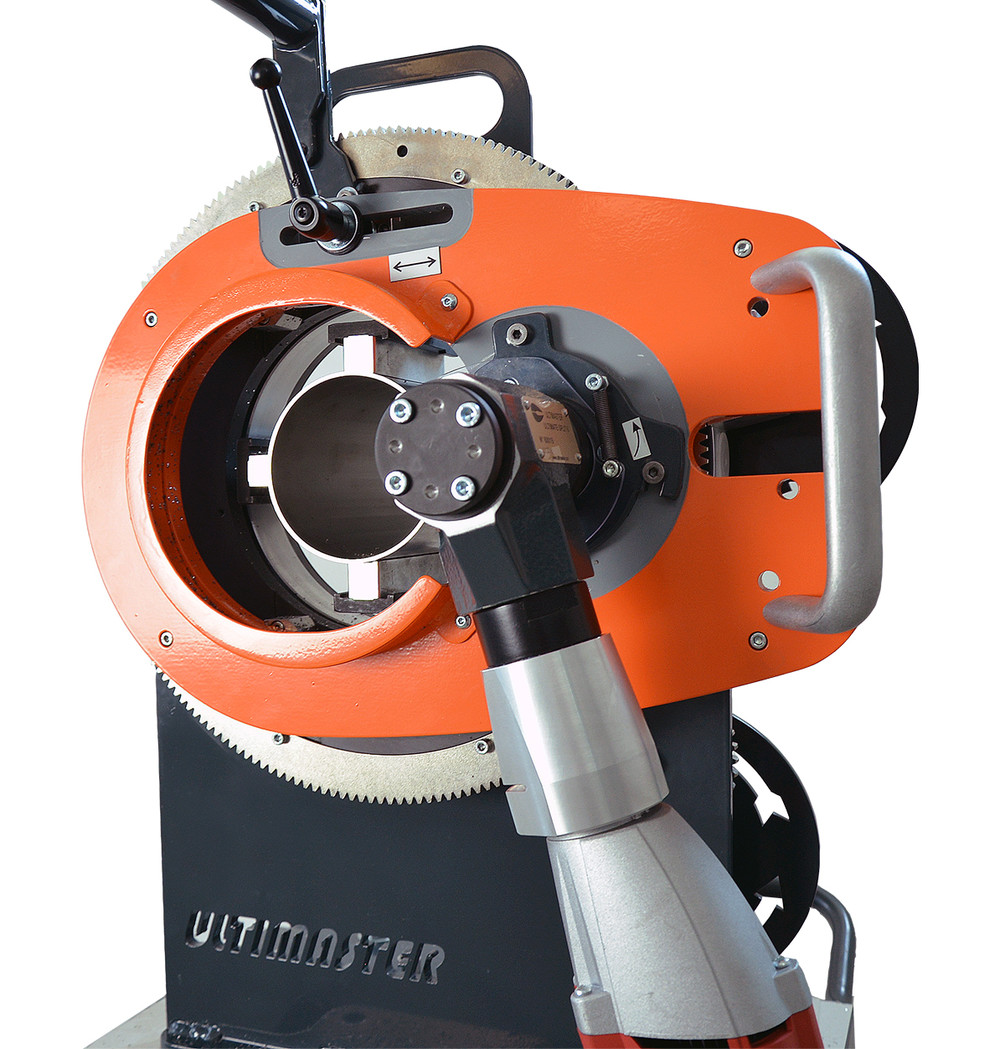

Ultimaster Machines


The Ultimate Split 6 orbital cutting machine is used for cutting tubes made of virtually all materials having diameters ranging from 1/2“ (12. 7 mm) to 6“ (168 mm) and wallthicknesses ranging from 0.04“ (1 mm) to 0. 59“ (15 mm).


It enables the cutting of pipes without any deformation thanks to its concentric clamping system. TThe cut is absolutely perpendicular and burr-free. The adjustment to the different diameters is very simple and fast.
