Squaring

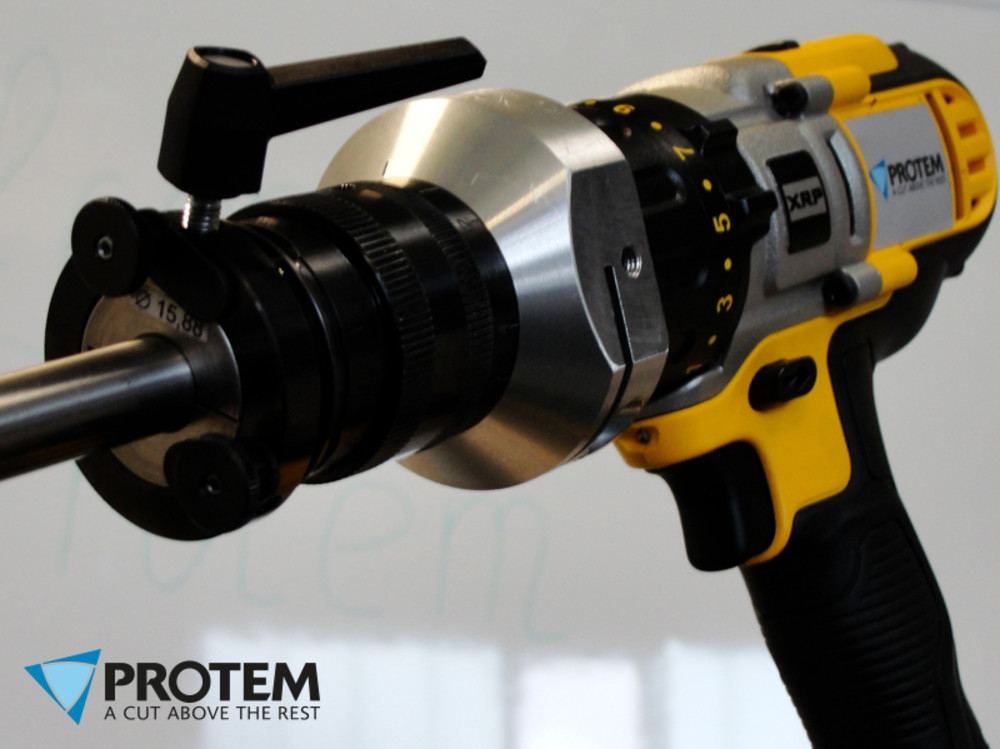

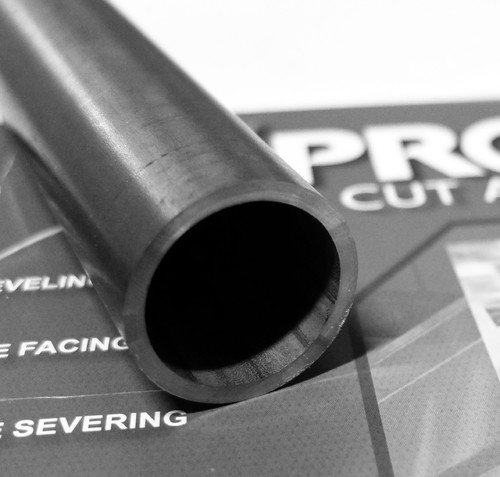

PROTEM squaring machines are the right solution for a wide range of applications encountered in numerous fields such as high purity (including semi-conductors), food-processing, pharmaceuticals, clean rooms, etc. Squaring corresponds to creating a land and making a flat surface on the pipe-end. Correct surfacing makes pipes easier to align. PROTEM pipe surfacing machines minimize risks of contamination inasmuch as they create chips in the form of a ribbon and not in particles.

  • SE60 - Tube squaring and beveling machine with pneumatic drive 730 W

    10 mm (0.39") ID
    60.3 mm (2.37") OD

  • SE60-1020 - Tube squaring and beveling machine with electric drive 1050 W

    10 mm (0.39") ID
    60.3 mm (2.37") OD

  • SE90NG - Tube squaring and beveling machine with pneumatic drive

    10 mm (0.39") ID
    90 mm (3.54") OD

  • SE90NG-1020 - Tube squaring and beveling machine with electric drive 2800 W

    10 mm (0.39") ID
    90 mm (3.54") OD

  • SE120 - Tube squaring and beveling machine with pneumatic drive 730 W

    50 mm (1.97") ID
    120 mm (4.72") OD

  • SE120-1020 - Tube squaring and beveling machine with electric drive 1050 W

    50 mm (1.97") ID
    120 mm (4.72") OD

  • SE219 - Od mounted beveling machine with pneumatic drive

    60.3 mm (2.37") ID
    219.1 mm (8.63") OD

  • SE219-1020 - Od mounted beveling machine with electric drive 220 V

    60.3 mm (2.37") ID
    219.1 mm (8.63") OD

  • SL30 - Tube squaring machine for tubes with electric drive

    3 mm (0.12") ID
    30 mm (1.18") OD

  • SL60 - Od mounted facing machine for tubes with electric drive

    10 mm (0.39") ID
    60 mm (2.36") OD

  • SL120 - OD clamping squaring machine for tubes with electric drive

    50 mm (1.97") ID
    120 mm (4.72") OD

  • BMFM114 - Bevel, face and counterbore separately or in a simultaneous operation on tubes up to 4.5 inches

    20 mm (0.79") ID
    114.3 mm (4.50") OD

  • BMFM219 - Bench Mounted Facing Machine BMFM 219 machining unit with concentric clamping device for Ø from 1" to 8.626"

    25.4 mm (1.00") ID
    219.1 mm (8.63") OD

  • SE25 - Facing machine for tubes, fittings, micro fittings and elbows - Tube Facing Machine

    3 mm (0.12") ID
    25.4 mm (1.00") OD

  • SE25E - Tube Facing Machine for tubes with electric drive - Tube Facing Machine

    3 mm (0.12") ID
    25.4 mm (1.00") OD

  • SE25RA - Tube Squaring Machine with electric Angle Drive

    3 mm (0.12") ID
    25.4 mm (1.00") OD

  • SE65 - Facing machine for tubes, fittings, micro fittings and elbows

    12.7 mm (0.50") ID
    60.3 mm (2.37") OD

  • SE65E - Facing machine for tubes with electric drive

    12.7 mm (0.50") ID
    60.3 mm (2.37") OD

  • SE65RA - Facing machine for tubes with electric drive

    12.7 mm (0.50") ID
    60.3 mm (2.37") OD

  • SE2T - Facing machine for tubes, fittings, micro fittings and elbows

    3 mm (0.12") ID
    60.3 mm (2.37") OD

  • SE2T-1020 - Facing machine for tubes with electric drive 220 V

    3 mm (0.12") ID
    60.3 mm (2.37") OD

  • S18 - Tube beveling machine with pneumatic drive

    14 mm (0.55") ID
    42 mm (1.65") OD

  • S18-1020 - Tube beveling machine with electric drive ID locking beveling machine with electric drive

    14 mm (0.55") ID
    42 mm (1.65") OD

  • S18KH - Tube beveling machine with pneumatic drive with feed lever

    14 mm (0.55") ID
    42 mm (1.65") OD

  • S18CA - Tube beveling machine with pneumatic drive with autom. clamping system

    14 mm (0.55") ID
    42 mm (1.65") OD

  • S18TP - Bevelling machine for boiler & heat exchanger tubes

    17.5 mm (0.69") ID
    45 mm (1.77") OD

  • SM8 Tube facing & beveling machine with pneumatic drive

    8 mm (0.31") ID
    32 mm (1.26") OD

  • SM8-1020 - Tube and pipe beveler with electric drive

    8 mm (0.31") ID
    32 mm (1.26") OD

  • SM8-1022 - Tube and pipe beveling machine with cordless drive

    8 mm (0.31") ID
    32 mm (1.26") OD

  • US25CH - Tube and pipe beveling machine with pneumatic drive 730 W

    12.5 mm (0.49") ID
    120 mm (4.72") OD

  • US25CH-1020 - Tube and pipe beveling machine with electric drive 1050 W

    12.5 mm (0.49") ID
    120 mm (4.72") OD

  • US25TA - Machining Unit for Fin Tubes

    12.5 mm (0.49") ID
    120 mm (4.72") OD

  • US25TP - Tube and pipe beveling machine for heat exchanger tubes beveling Cut to Length Weld Removal

    25.4 mm (1.00") ID
    63.5 mm (2.50") OD

  • US25CA - Beveling machine with automatic clamping system

    12.5 mm (0.49") ID
    120 mm (4.72") OD

  • US30CH - ID mount beveler with pneumatic drive for boiler tubes

    32 mm (1.26") ID
    168.3 mm (6.63") OD

  • US30CH-E - ID mount tube beveler with electric drive 220V

    32 mm (1.26") ID
    168.3 mm (6.63") OD

  • US30HY - ID mount tube beveler with hydraulic drive ID locking beveling machine

    32 mm (1.26") ID
    168.3 mm (6.63") OD

  • US30CA - ID mount beveler with pneumatic drive with autom. clamping system

    32 mm (1.26") ID
    168.3 mm (6.63") OD

  • US30ACC - ID mount beveler with flange resurfacing module

    50 mm (1.97") ID
    355 mm (13.98") OD

  • US40 - Tube & Pipe Chamfering Machine with pneumatic drive ID locking beveling machine

    43 mm (1.69") ID
    273 mm (10.75") OD

  • US40-1020 - Tube & Pipe Chamfering Machine with electric drive

    43 mm (1.69") ID
    273 mm (10.75") OD

  • US40-1060 - Tube & Pipe Chamfering Machine with hydraulic drive

    43 mm (1.69") ID
    273 mm (10.75") OD

  • US40CA - Tube and pipe beveling machine with pneumatic drive with autom. clamping system

    43 mm (1.69") ID
    273 mm (10.75") OD

  • US80 - ID clamping beveler with pneumatic drive

    80 mm (3.15") ID
    406.4 mm (16.00") OD

  • US80HY - ID clamping beveler with hydraulic drive

    80 mm (3.15") ID
    406.4 mm (16.00") OD

  • US80E - ID clamping beveler with electric drive

    80 mm (3.15") ID
    406.4 mm (16.00") OD

  • US150 - Tube and pipe beveling machine with pneumatic drive

    150 mm (5.91") ID
    610 mm (24.02") OD

  • US150-1020 - Tube and pipe beveling machine with electric drive

    150 mm (5.91") ID
    610 mm (24.02") OD

  • US150-1060 - Tube and pipe beveling machine with hydraulic drive

    150 mm (5.91") ID
    610 mm (24.02") OD

  • US450 - Tube and pipe beveling machine with pneumatic drive

    457 mm (17.99") ID
    914 mm (35.98") OD

  • US450-1060 - Tube and pipe beveling machine with hydraulic drive

    457 mm (17.99") ID
    914 mm (35.98") OD

  • GR40 - Od mounted machining equipment for fin tubes & Waterwall Cutout Windows

    21.3 mm (0.84") ID
    60.3 mm (2.37") OD

  • GR76 - Od mounted machining equipment Waterwall Cutout Windows

    38 mm (1.50") ID
    76 mm (2.99") OD

  • GR90 - Outside clamping machining equipment for fin tubes & Waterwall Cutout Windows

    42.2 mm (1.66") ID
    89 mm (3.50") OD

  • GR120 - Od mounted machining equipment Waterwall Cutout Windows

    48.3 mm (1.90") ID
    114.3 mm (4.50") OD

  • MF170 - mobile tube cutting and beveling machine

    60.3 mm (2.37") ID
    168.3 mm (6.63") OD

  • MF420 - mobile tube cutting and beveling machine

    168.3 mm (6.63") ID
    420 mm (16.54") OD

  • O-HSB-C-6-14 - Beveling and surfacing unit for tubes of 6" to 14"

    152.4 mm (6.00") ID
    355.6 mm (14.00") OD

  • PFM-414 - Pipe Facing Machine PFM for Ø ranging from 4" to 14"

    101.6 mm (4.00") ID
    355.6 mm (14.00") OD

  • PFM-1222 - Pipe Facing Machine PFM for Ø ranging from 12" to 22"

    323.9 mm (12.75") ID
    558.8 mm (22.00") OD

  • PFM-1030 - Pipe Facing Machine PFM for Ø ranging from 10" to 30"

    273.1 mm (10.75") ID
    762 mm (30.00") OD

  • PFM-3038 - Pipe Facing Machine PFM for Ø ranging from 30" to 38"

    762 mm (30.00") ID
    965 mm (37.99") OD

  • PFM-3848 - Pipe Facing Machine PFM for Ø ranging from 34" to 48"

    965 mm (37.99") ID
    1219.2 mm (48.00") OD

  • PFM-4656 - Pipe Facing Machine PFM for Ø ranging from 46" to 56"

    1168.4 mm (46.00") ID
    1422.4 mm (56.00") OD

  • PFM-5464 - High Speed Bevelers for pipes ranging from 54" to 64"

    1371.6 mm (54.00") ID
    1625.6 mm (64.00") OD

  • PFM-6272 - Pipe Facing Machine PFM for Ø ranging from 62" to 72"

    1574.8 mm (62.00") ID
    1828.8 mm (72.00") OD

  • US600R - Pipe beveler for very heavy wall thicknesses

    600 mm (23.62") ID
    1500 mm (59.06") OD

  • BB-1-6 - High Speed Beveling Bench for pipes ranging from 1" to 6’’

    25.4 mm (1.00") ID
    168.3 mm (6.63") OD

  • BB-3-16 - Automatic Bench machine for pipes ranging from 3" to 16’’

    88.9 mm (3.50") ID
    406.4 mm (16.00") OD

  • BB-12-24 - High Speed Beveling Bench for pipes ranging from 12" to 24’’

    304 mm (11.97") ID
    609 mm (23.98") OD

  • BB-24-36 - Automatic Beveling Bench machine for pipes ranging from 24" to 36’’

    609 mm (23.98") ID
    914 mm (35.98") OD

  • BB-36-48 - High Speed Beveling Bench for pipes ranging from 36" to 48’’

    914 mm (35.98") ID
    1219 mm (47.99") OD

  • CTA-1-4 - High Speed cutting and beveling machine for pipes ranging from 1" to 4"

    25.4 mm (1.00") ID
    114 mm (4.49") OD

  • CTA-2-6 - Automatic cutting and beveling machine for pipes ranging from 2" to 6"

    60.3 mm (2.37") ID
    152.4 mm (6.00") OD

  • CTA-2-12 - High Speed cutting and beveling machine for pipes ranging from 2" to 12"

    60.3 mm (2.37") ID
    304.8 mm (12.00") OD

  • CTA-6-16 - Automatic cutting and beveling machine for pipes ranging from 6" to 16"

    168.3 mm (6.63") ID
    406.4 mm (16.00") OD

  • CTA-12-24 - High Speed cutting and beveling machine for pipes ranging from 12" to 24"

    323.9 mm (12.75") ID
    610 mm (24.02") OD

  • CTA-16-30 - Automatic cutting and beveling machine for pipes ranging from 16" to 30"

    406.4 mm (16.00") ID
    762 mm (30.00") OD

  • S18-1022 Tube beveling machine with cordless drive

    14 mm (0.55") ID
    42 mm (1.65") OD
