Ultimaster US6 - Orbital cutting saw

Newsletters 01/09/2019

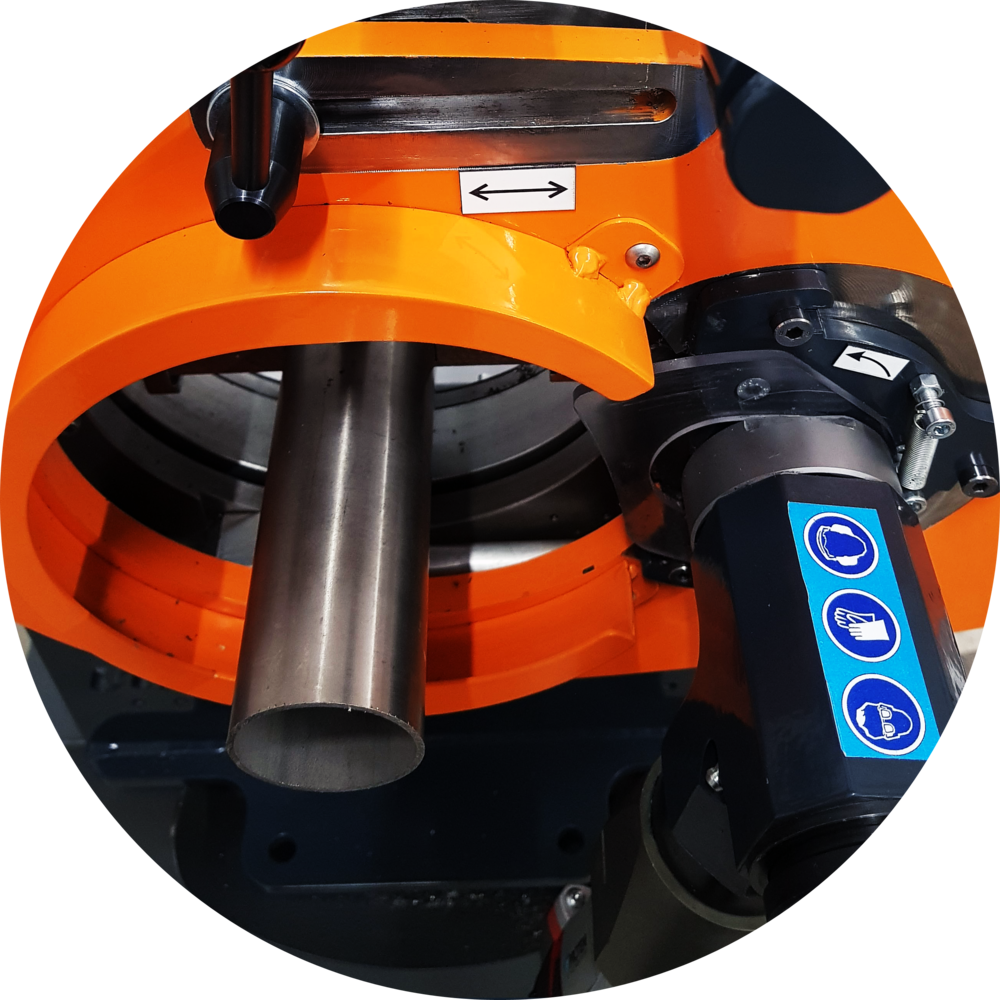

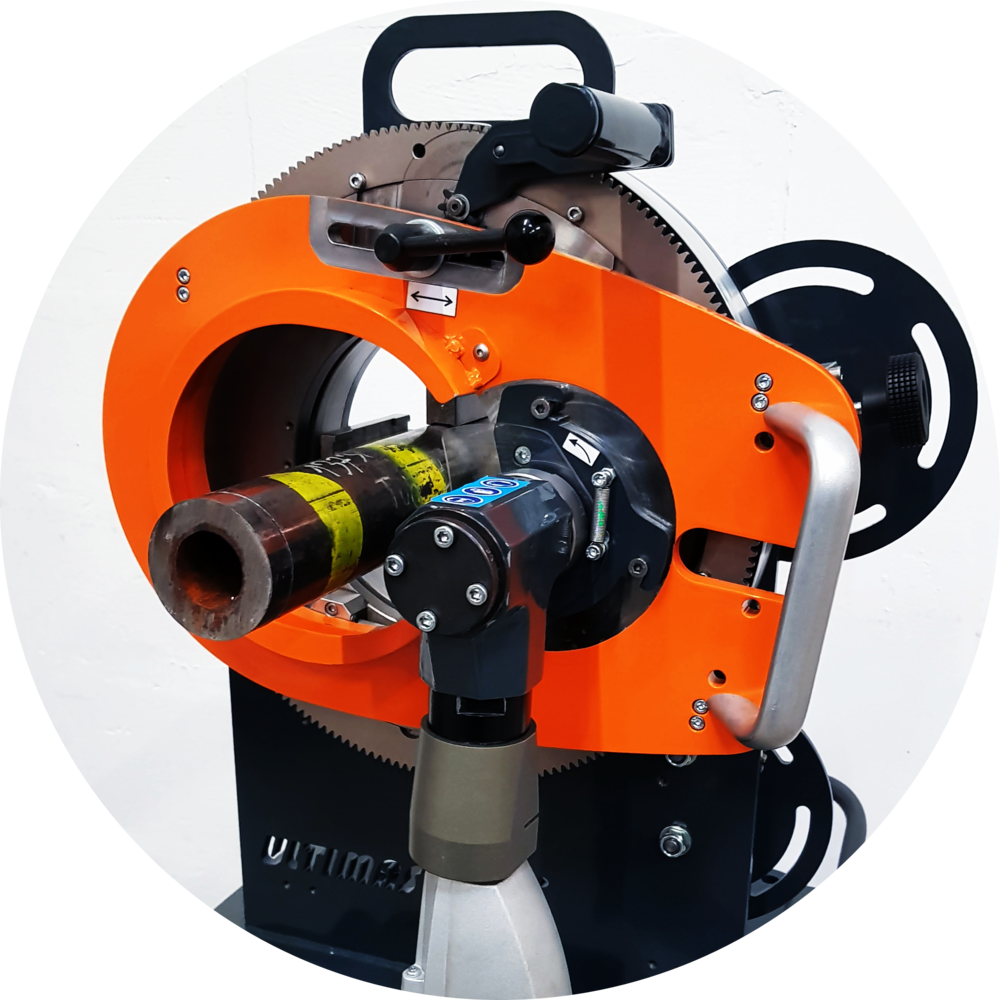

The Ultimate Split 6 orbital cutting machine is used for cutting tubes made of virtually all materials having diameters ranging from 1/2“ (12. 7 mm) to 6“ (168 mm) and wall-thicknesses ranging from 0.04“ (1 mm) to 0. 59“ (15 mm).

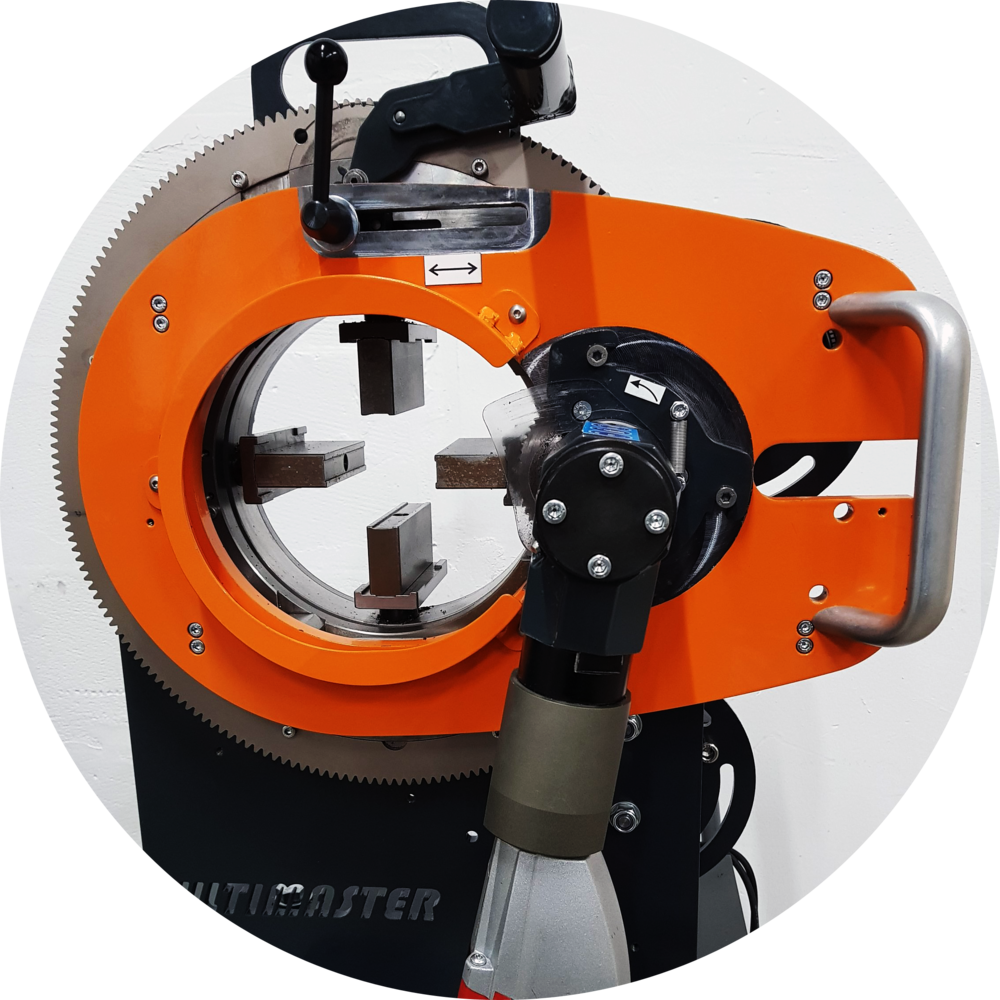

It enables the cutting of tubes without any deformation thanks to its concentric clamping system. The cut is absolutely perpendicular and burr-free.
The adjustment to the different diameters is very simple and fast.

The Ultimate Split 6 is the orbital cutting saw you need for all your welding preparation works
on-site or in the workshop.

Suitable for all types of steel:
mild steel, stainless steel, duplex, super duplex, inconel, hastelloy, aluminium, copper, titanium

Various motorization options are available: Electric or pneumatic


• Perpendicular cut
• Automatic centering
• Perfect concentric clamping

• Burr-free cut
• No Vibration
• No heat-affected zone


• Excellent preparation
• Rigidity, flexibility, reliability
• Ergonomic design

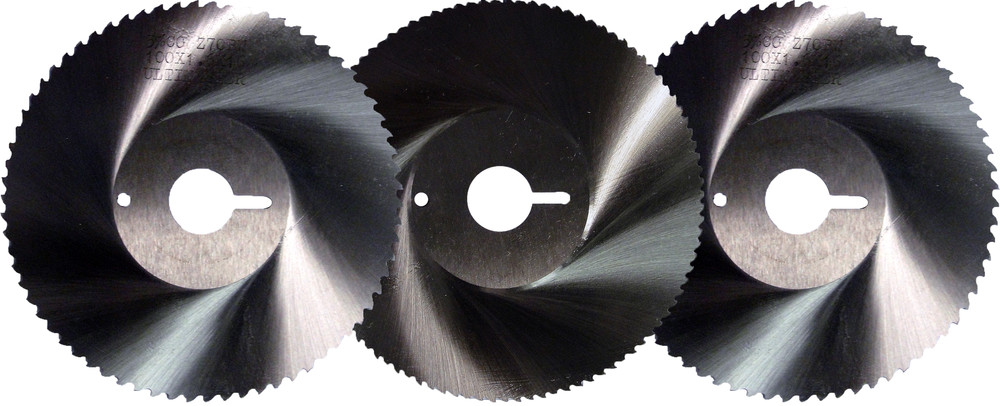

Cutting saw blades

Different saw blades can be used, depending on the pipe thickness to be cut. The diameter of the orbital cutting saw blades is constantly 100 mm (3. 94“). Specific coating TIALN are available on order.
