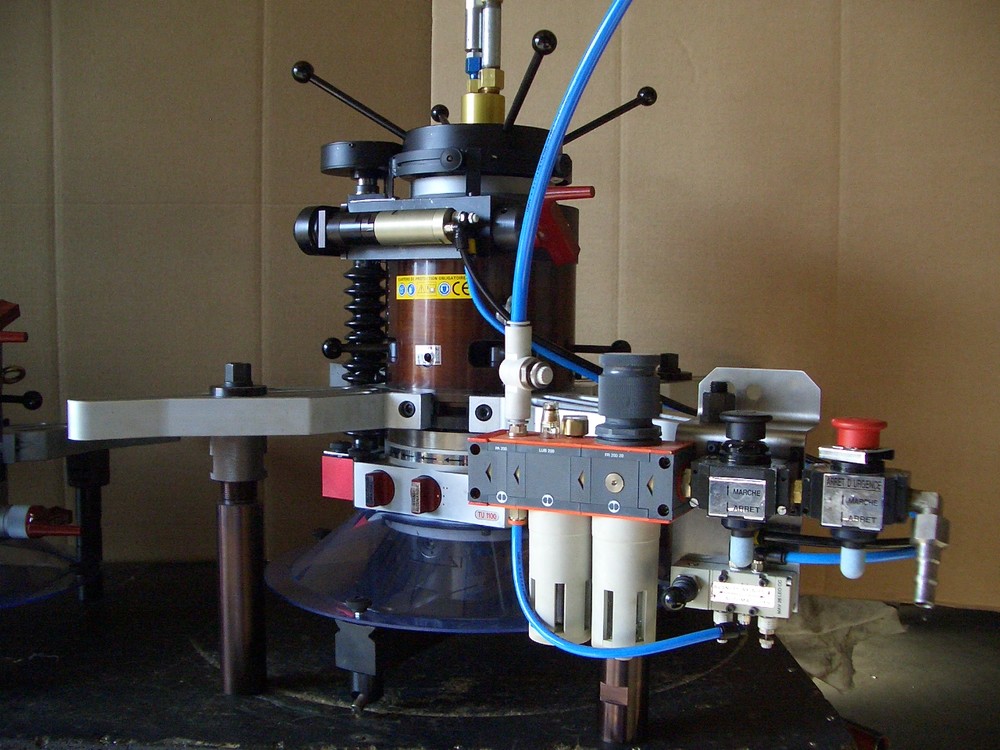

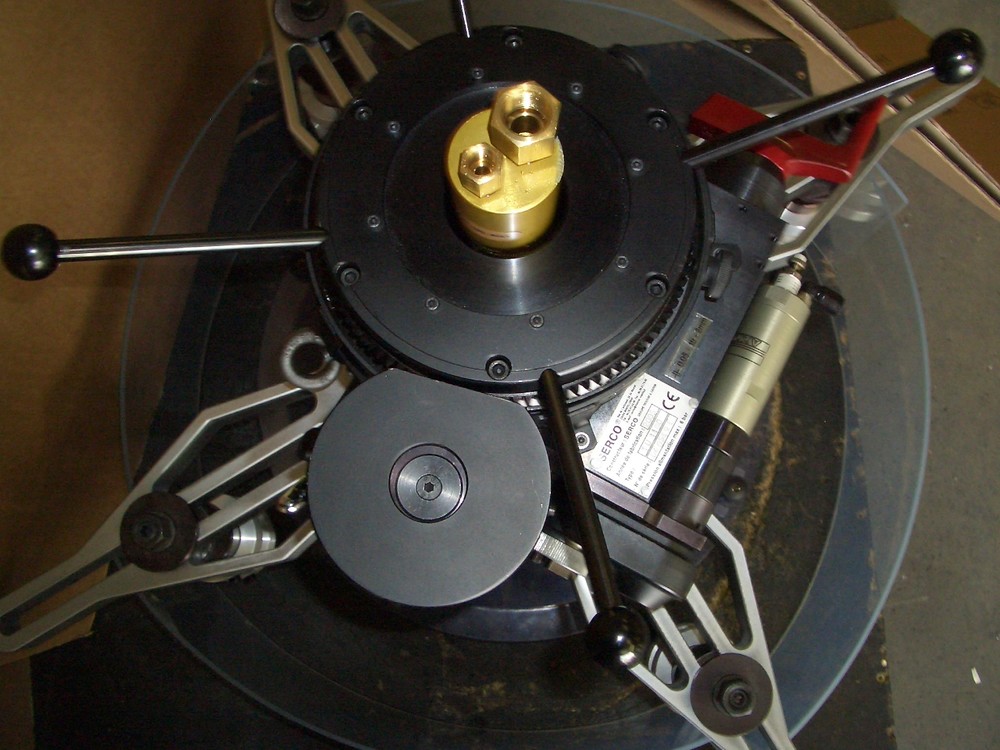

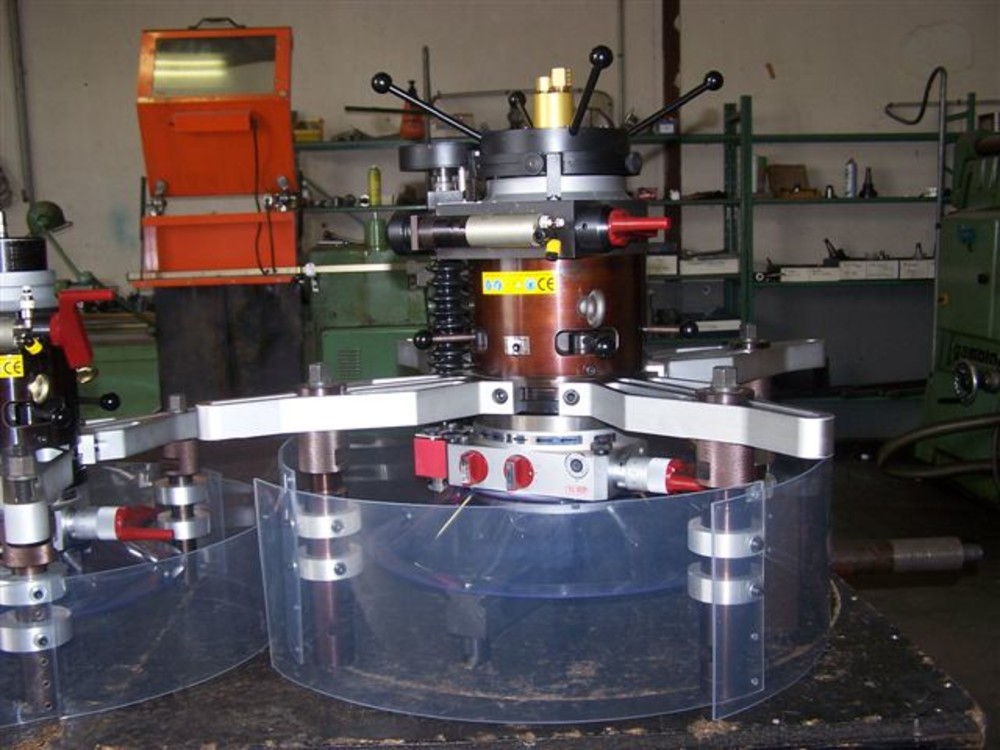

TU1100 Flange & Valve Facing Equipment. Portable lathes for sealing surfaces, flanges and bores TU1100

  • TU1100 Flange & Valve Facing Equipment. Portable lathes for sealing surfaces, flanges and bores
TU1100 Flange & Valve Facing Equipment. Portable lathes for sealing surfaces, flanges and bores
0 mm (0.00") ID
1100 mm (43.31") OD

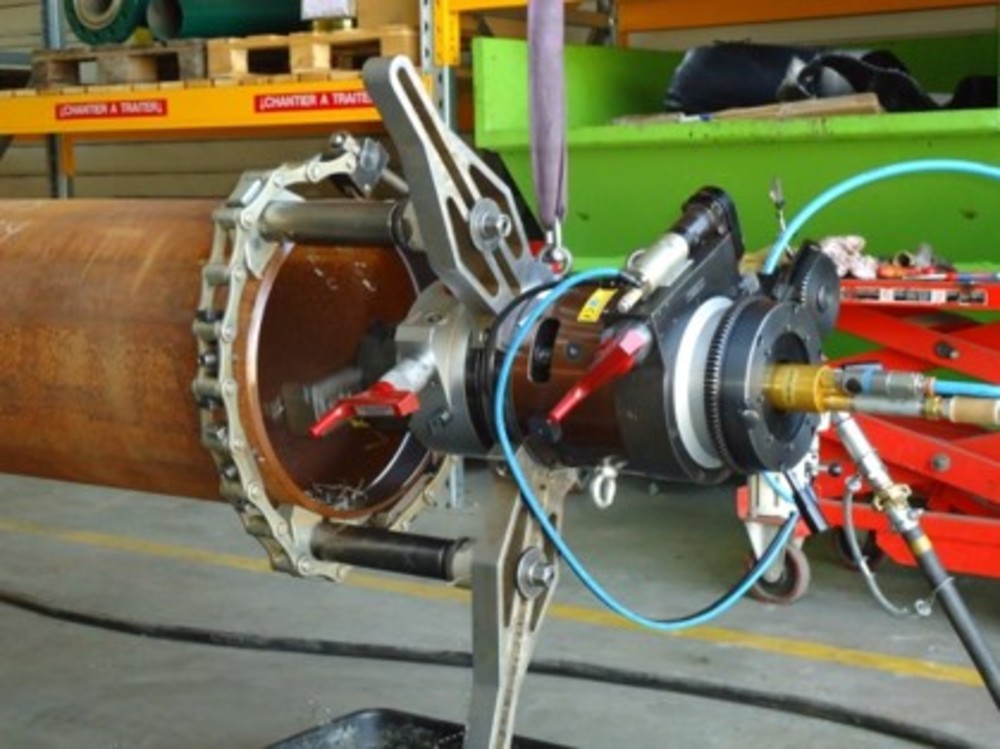

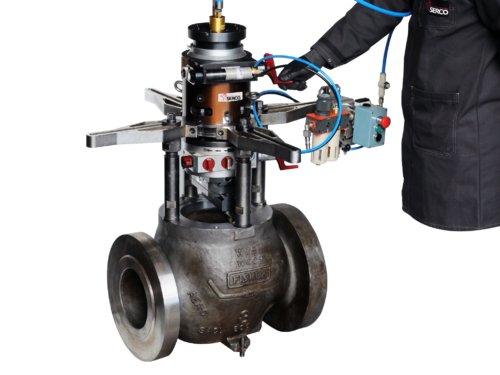

The SERCO TU machining units are designed for the repair and maintenance of virtually any component: Flanges, Grooves, Safety valves, Sealing surfaces, Hole surfaces, High pressure valves, Bolt extraction, Flat seats, Conical seats, Manholes, Diesel engine repairs, RTJ Grooves etc.The SERCO TU1100 is designed for machining surfaces up to 1,100 mm (43.3”) in Ø. Specially designed support arms increase its capacity. The rigidity of its design also enables it to machine valve seats down to depths of 500 mm (19.7”). Like the TU400 and 600, it is equipped with automatic feed systems and can be fitted with an RTJ system. The FC 1150 option, a chain clampingsystem specially designed for these machines, is also available.

Photos

Vidéos

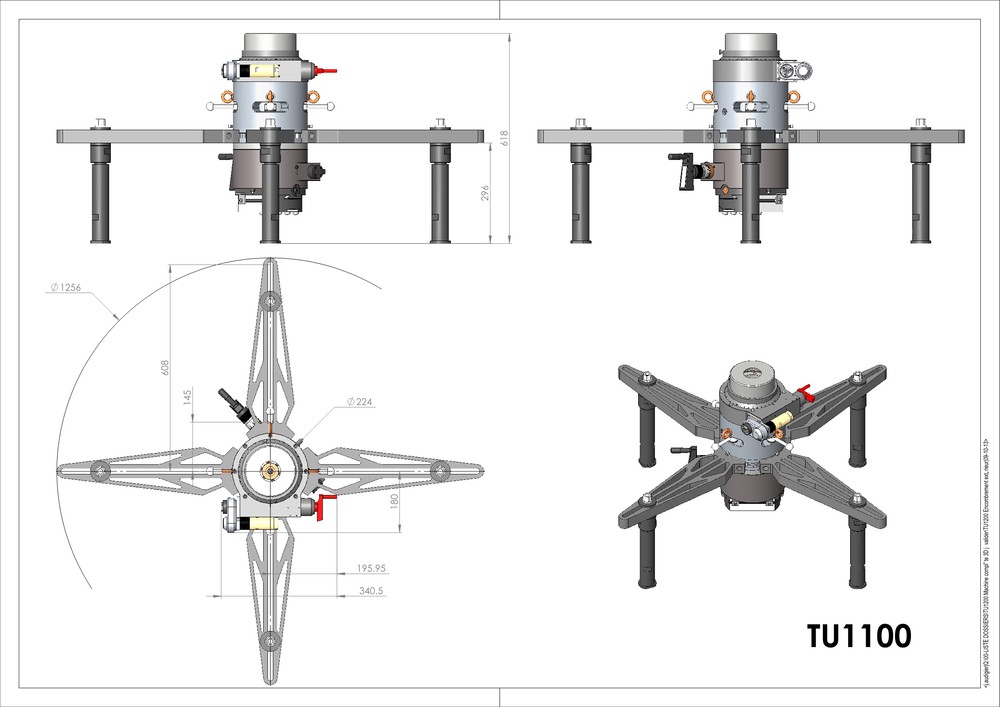

Technical Features

TU1100
  • 150 mm (5.91")
  • 315.5 mm (12.42")
  • 1100 mm (43.31")
  • 100 mm (3.94")
  • Yes
  • 1100 mm (43.31")
Data sheet
Dimensions Add to Cart
