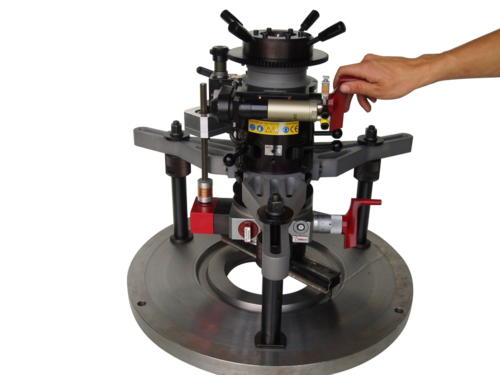

RTJ System for Conical Machining for RTJ grooves for TU600 RTJforTU600

  • RTJ System for Conical Machining for RTJ grooves for TU600
RTJ System for Conical Machining for RTJ grooves for TU600
0 mm (0.00") ID
600 mm (23.62") OD
Making RTJ groove bearing surfaces:• Conical machining – Machining 2 slopes, inside and outside at anangle of 23° to vertical.• Groove machining Conical machining for RTJ groove bearing surfaces is done using an automatic feed combining the radial and axial feeds on the SERCO portable machine.Angular accuracy / Machining accuracy: 0.01 mm / Surface finish: Ra 1.6.

Technical Features

RTJforTU600
  • 600 mm (23.62")
  • 600 mm (23.62")
Data sheet
Dimensions
Add to Cart

We also propose

  • TU600 Flange & Valve Facing Equipment. Portable lathes for sealing surfaces, flanges and bores

    0 mm (0.00") ID
    600 mm (23.62") OD
