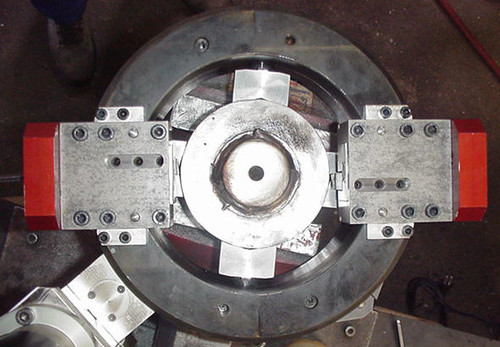

TTSNG48 - Splitframe Orbital Tube Cutting & Beveling Clamshell for pipes from 10 to 48 mm TTSNG48

  • TTSNG48 - Splitframe Orbital Tube Cutting & Beveling Clamshell for pipes from 10 to 48 mm
TTSNG48 - Splitframe Orbital Tube Cutting & Beveling Clamshell  for pipes from 10 to 48 mm
10.3 mm (0.41") ID
48.3 mm (1.90") OD
The machining capacity of the TTSNG48 is 10.3 mm (0.405") to 48.3 mm (1.902"). The TTS splitframes can be driven either pneumatically or electrically. In line or right angle drive available.

Technical Features

TTSNG48
  • 48.3 mm (1.90")
  • 10.3 mm (0.41")
  • 48.3 mm (1.90")
  • 10.3 mm (0.41")
Data sheet

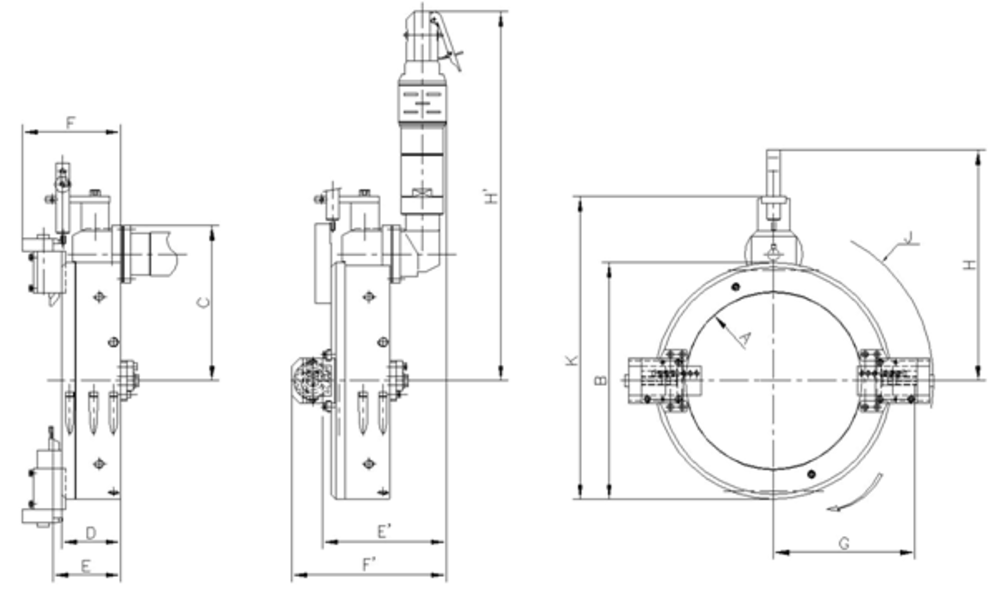

Dimensions Add to Cart

We also propose

  • SE60 - Tube squaring and beveling machine with pneumatic drive 730 W

    10 mm (0.39") ID
    60.3 mm (2.37") OD

  • SE90NG - Tube squaring and beveling machine with pneumatic drive

    10 mm (0.39") ID
    90 mm (3.54") OD

  • SE120 - Tube squaring and beveling machine with pneumatic drive 730 W

    50 mm (1.97") ID
    120 mm (4.72") OD

  • US30CH - ID mount beveler with pneumatic drive for boiler tubes

    32 mm (1.26") ID
    168.3 mm (6.63") OD
