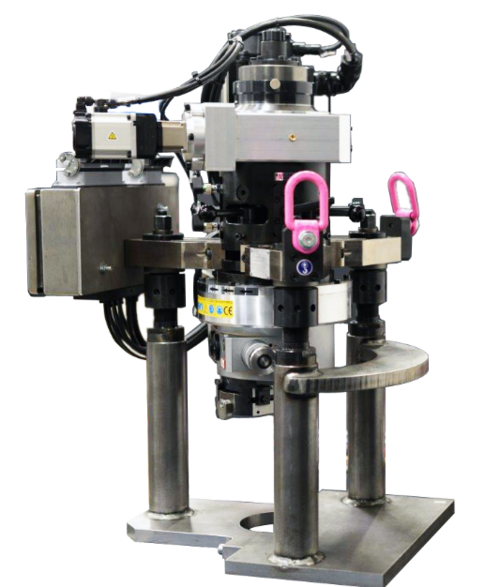

TU1100 TE Flange & Valve Facing Equipment. Portable lathes for sealing surfaces, flanges and bores TU1100TE

  • TU1100 TE Flange & Valve Facing Equipment. Portable lathes for sealing surfaces, flanges and bores
TU1100 TE Flange & Valve Facing Equipment. Portable lathes for sealing surfaces, flanges and bores
0 mm (0.00") ID
1100 mm (43.31") OD
Designed on the basis of a standard TU1100, the machine is fully automatic and power-driven by brushless motors (rotation and axial and radial feed movements). Its design enables all mechanical play to be eliminated and it performs at high levels of accuracy. The machine is remote-controlled by an axis interpolation technique in to carry out highly complex and varied machining operations in addition to normal boring and facing functions.Conical machining (infinitely ariable angles)Threading (infinitely variable radius Threading and tapping (Ø and pitch on request)Spiral and concentric fluting (variable pitch and depth)The TU1100 TE can carry out numerous machining operations, many of which were impossible with a portable machine until now!

Technical Features

TU1100TE
  • 150 mm (5.91")
  • 315.5 mm (12.42")
  • 1100 mm (43.31")
  • 100 mm (3.94")
  • Yes
  • 1100 mm (43.31")
Data sheet
Dimensions
Add to Cart
